₪ 39,990.00

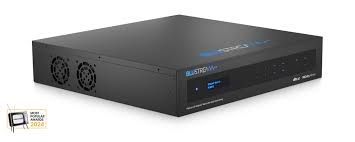

Platinum 8×8 HDBaseT™ CSC AV Matrix with Audio Downmixing – 150m
Our Platinum 8×8 HDBaseT™ CSC Matrix delivers a range of industry leading features.
The PLA88CS is a 4K HDMI 2.0 8×8 Matrix, distributing HDMI, ARC, LAN, Bi-directional IR / RS-232 and PoC up to lengths of 150m (1080p) over a single CAT cable.
Advanced optional features include dual HDMI and HDBaseT™ outputs featuring CSC for support of 4K resolutions including 4K 60Hz 4:4:4 colour space, and HDR, with independent down-scaling of 4K video to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including independent Dolby Audio® & DTS Audio down mixing on HDMI and audio outputs allowing a mixture of different audio output formats for use with different audio capable displays and AV amplifiers.
The PLA88CS also includes independent audio routing, Audio Return Channel (ARC), Optical (S/PDIF) audio delay for lip sync correction, bi-directional IR and RS-232 pass-through, and a web-GUI for control and configuration.
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• 4 Outputs featuring Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
• Extends HDMI up to distance of 150m at 1080p, and 4K UHD video up to 100m (up to 4K 60Hz 4:4:4)
• Features 8x HDMI inputs which can be independently routed to 8x HDBaseT™ + HDMI outputs
• Independent video scaling on outputs
• Supporting Dolby Audio® Technology
• Up to 24×16 Audio Matrix independently controllable from video
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Bi-directional IR & RS-232 from all input and output locations (with compatible Transmitters & Receivers)
• Integrated Ethernet (100Mbps) switch (LAN Serving) when used with Blustream RX150CS Receivers
• Web interface module for control and configuration of Matrix
• Control of Matrix via front panel , IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible RX150CS Receivers
• 3rd party drivers available for all major control brands
• HDCP 2.2 compliant with advanced EDID management
• 2U Design for 19” rack mount integration – mounting kit included
• 4x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT™/ HDMI outputs
– HDMI audio breakout to coaxial digital and analogue L/R audio outputs with variable pre-amp line level control
– Supports ARC (Audio Return Channel) via HDMI or optical digital inputs from compatible RX150CS Receivers
– Supports Dolby Audio® and DTS Audio breakout and down mixing from HDMI inputs to 2ch audio
® Dolby Audio is a registered trademark of Dolby Laboratories Licensing Corporation.
