₪ 7,490.00

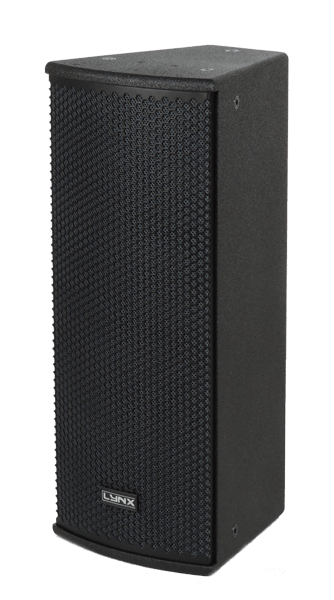

The HR-28 enclosure is a high-performance passive full range, with an excellent power-size ratio. It consists of two 8” hexacone transducers and a 1” high frequency compression driver. It offers a wide dispersion of 90º x 60º and 126 dB SPL (1000W program).
This enclosure offers a selectable operation between bi-amp or passive mode and is ideal for a wide variety of applications. Although this cabinet can be used without a processor, we strongly recommend that the cabinet presets are applied for maximum optimization and performance.
For Low Frequency reinforcement, several subwoofer options are available.
| → Club & Bar installations | |
| → Sound reinforcement | |
| → Theatres | |
| → Houses of worship | |
| → Multi media spaces | |
| → Public address |
Components |
LF: 2 x 8″, 2″ aluminium voice coil, hexacone cone |
HF: 1″ Exit compression Driver, 1.75″ aluminium voice coil, Polyester diaphragm |
|
| Frequency Range | 54 Hz – 20 KHz (-10dB) |
Frequency Response |
60 Hz – 18 KHz (± 3dB) |
| Sensitivity | Passive Mode: 93 dB (1W@1m) |
Max SPL |
Passive Mode: 120dB – 126dB Peak
|
| Coverage Angle | 90º x 60 º (Rotatable) |
Power |
Passive mode: 500 W (1000 W program, 2000 W peak)
|
| Crossover | Bi-Amp / Passive (Selectable) |
Nominal Impedance |
4 Ω Passive / Biamp LF 4 Ω, HF 8 Ω |
| Connectors | 2 x Neutrik Speakon NL4MP |
Finish |
Polyurea coating – other colours (RAL) available |
| Material | 15 mm premium birch plywood |
Dimensions |
665 x 279 x 298 mm (H x W x D) |
| Weight | 17 Kg (37 lbs) |
Fittings |
11 x M10 points |
