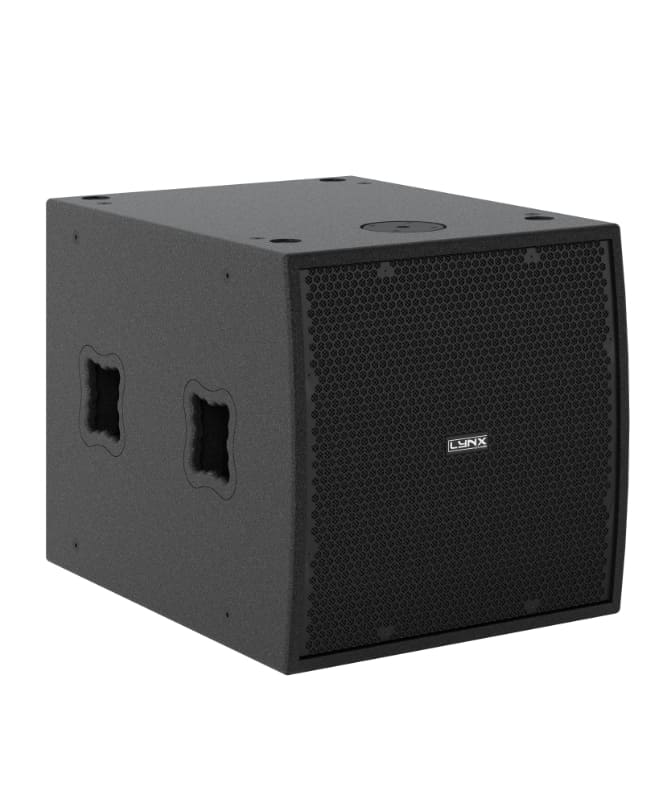

The HR-18/10 is a compact subwoofer with a great power-volume-weight ratio. This cabinet is designed to work together with the full range units of the HR series, offering significant reinforcement for the low frequencies.
Medium power, subwoofer cabinet with one 18” low frequency in bass reflex, direct radiation configuration. 135dB SPL (2000W Program)
Although this subwoofer can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.
Perfectly suited for:
| → Club & Bar installations |
| → Sound reinforcement |
| → Theatres |
| → Houses of worship |
| → Multi media spaces |
| → Public address |
Technical Data
Components |
1 x 18″, 3″ copper voice coil |
| Frequency Range | 40 Hz – 200 Hz (-10dB) |
Frequency Response |
46 Hz – 200 Hz (± 3dB) |
| Sensitivity | 101 dB (1W@1m) π |
Max SPL |
129 dB – 135 dB Peak |
| Coverage | Omnidirectional |
Power |
1000 W (2000 W program, 4000 W peak) |
| Crossover | Active |
Nominal Impedance |
8 Ω |
| Connectors | 2 x Neutrik Speakon NL4MP |
Finish |
Polyurea coating – other colours (RAL) available |
| Material | 18 mm premium birch plywood |
Dimensions |
511 x 505 x 681 mm (H x W x D) |
| Weight | 32 Kg (70.5 lbs) |
