The CHA660 is a 2-way horn-loaded loudspeaker which is designed for long-throw, full-range reproduction of music and speech in a wide variety of indoor and outdoor applications.

The construction is composed of a 1" high-frequency compression driver and a 6.5" mid/low frequency driver. The selection of high-quality components and acoustic engineering craftsmanship makes the CHA660 significantly better performing than other traditional horn speakers. A smooth frequency response and high efficiency ensure an extraordinary clarity of speech and extended frequency response for music.

It features an RMS power handling of 60 watts and a max power handling of 120 watts. The sensitivity measures 99 dB, while a maximum continuous SPL of 116 dB can be achieved. The frequency response (±3 dB) starts from 100 Hz up to 16 kHz.

A multi-tapping line transformer allows the speaker to be used in 100 Volt and 70 Volt public address systems. It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector. Various power taps for 60 Watt, 30 Watt, 15 Watt and 7.5 Watt are available.

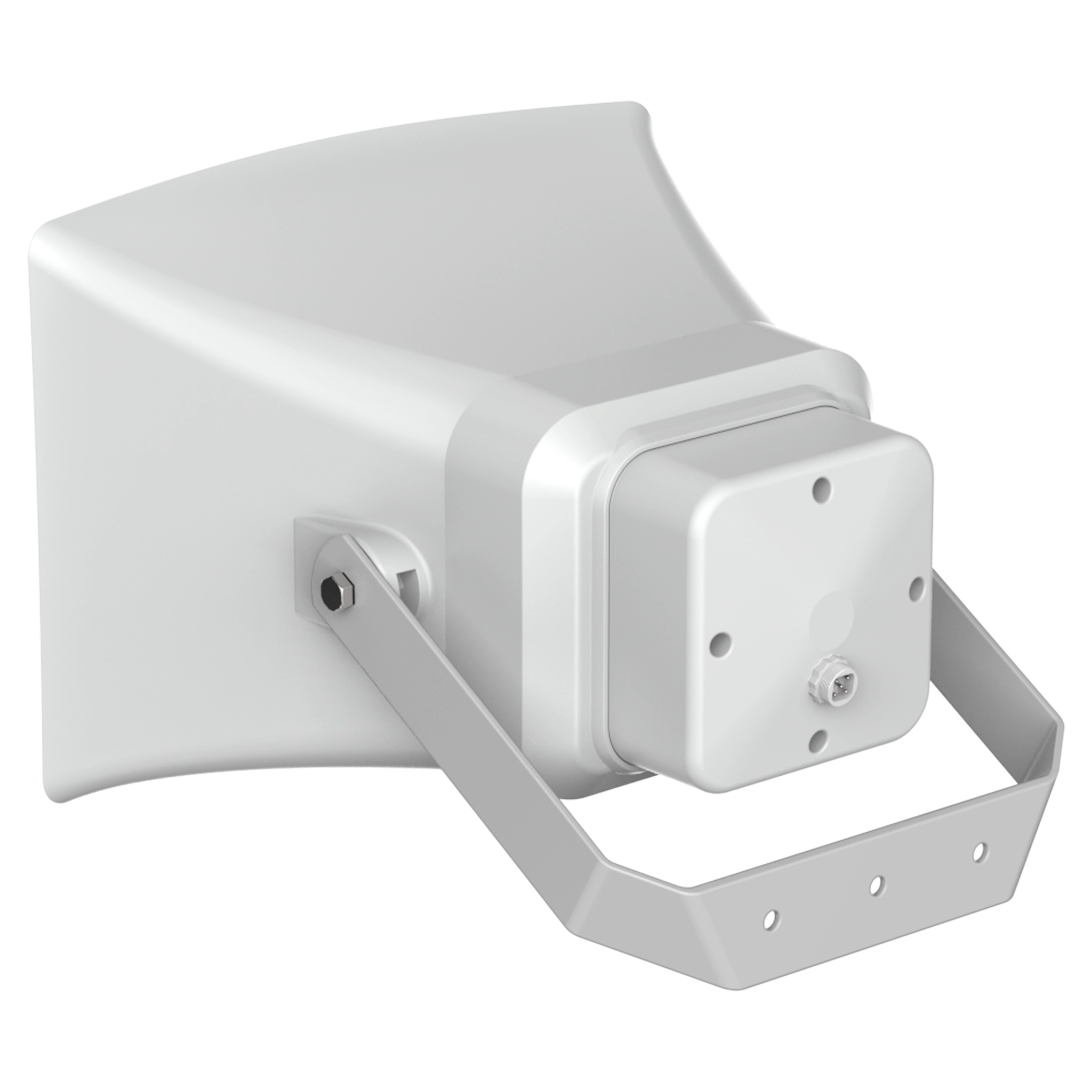

The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement. This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.
