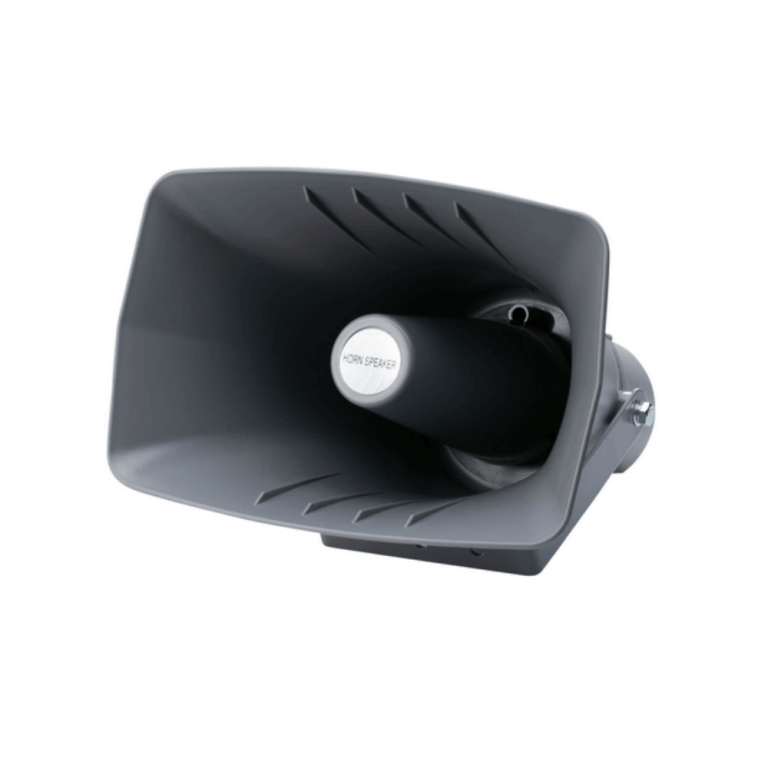

Horn tweeter for PA system speaker
Very stable and attractive horn speaker with integrated 100v matching transformer in spite of it’s stability this speaker series has a very modern and appealing appearance .
The back side cover ,in which also the matching transformer is installed, is made of scratch and impact resistant plastic . the horn is made of solid aluminum OR ABS and the mounting of enameled steel
Of course it is also possible to paint this equipment in each RAL colour according to the architects requirement
The mounting bracket if fully tiltable and also very easy to mount
- The complete construction of this horn speaker series has the highest protection type , IP 66
- The 2 pole connection cable flexible hose line is led through a waterproof PG screw joint
- The 6 step impedance is switchable with a screwdriver at the rear side of the unit
- The horn speaker systems are constructed for superlative sound pressure and provide an amazingly good frequency response .
OUTDOOR ABS HOUSING IP66 HORN SPEAKER
|
Technical data |
H-50RT |
|
Load rating |
50 W |
|
Nominal impedance |
8 ohms |
|
Transformer tappings at 100V |
50-25-12.5 W |
|
Frequency range |
400Hz-5KHz |
|
SPL(@1W/m) |
108 dB |
|
Protection type |
IP 66 |
|
Dimension Ø×D(mm) |
Ø315×207×368mm |
|
Material,Colour |
ALU , RAL7042 |
