Elegant Full-Motion TV Wall Mount
For most 23"-43" LED, LCD flat panel TVs
Description

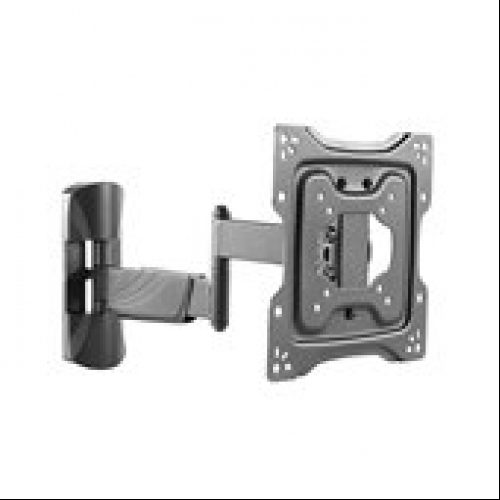

The LPA50-222 is a full-motion wall mount for most 23"-43" LED, LCD flat panel TVs up to 25kg/55lbs. The arm can be stretched up to 400mm for a full range of movement to perfectly position your screen display – swivel up to 90° left or right and -15°~+5° tilt. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 200×200
חזרו אלי בקשר למוצר
SPECIFICATION
| Product Category: | Full-motion TV Wall Mount |
| Rank: | Standard |
| Material: | Steel,Plastic |
| Metal Sheet Thickness: | Wall Plate THK=3mm pickling sheet,VESA Panel THK=1.8mm cold-rolled sheet (Wall Plate THK=0.12" pickling sheet,VESA Panel THK=0.071" cold-rolled sheet) |
| Pipe Size: | 40x20x1.5mm (1.6"x0.79"x0.059") |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |

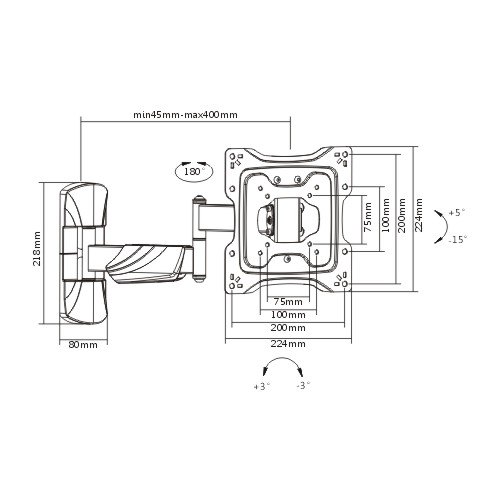

| Dimensions: | 224x280x400mm (8.8"x11"x15.7") |
| Fit Screen Size: | 23"-42" |
| Fit Curved TV: | No |
| Mounting Hole Pattern : | VESA Only |
| VESA Compatible: | 75×75,100×100,200×100,200×200 |
| Max. VESA: | 200x200mm |
| Weight Capacity: | 25kg (55lbs) |
| Strength Tested: | 3 Times Approved |
| Profile: | 45~400mm (1.8"~15.7") |
| Tilt Range: | +5°~-15° |
| Swivel Range: | +90°~-90° |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | No |
| Installation: | Solid Wall,Single Stud |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | Yes |
| Anti-theft: | No |
| Bubble Level: | No |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |
| Certification: | GS |
