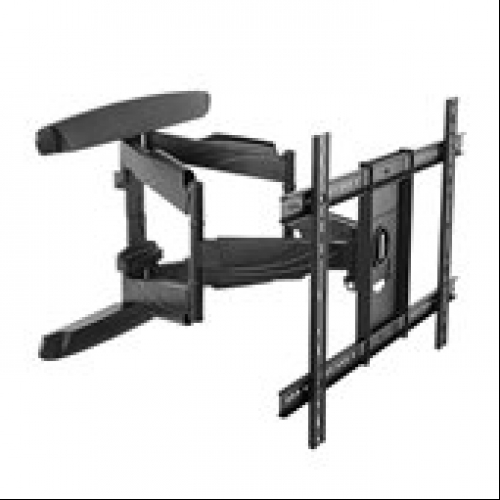

The KMA28-466D is a full-motion wall mount for most 37"-86" LED, LCD flat panel TVs up to 45kg/99lbs. The arm can be stretched up to 517.5mm for a full range of movement- you can easily tilt, extend, fold and swivel your TV and any viewing angle whatever you want. The wall plate cover of the TV mount and cable-hiding system looks more luxurious and nice, and also keeps the TV cable behind your TV neat. Its built-in level adjustment offers 5° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA holes up to 600×400. For 406 mm/450 mm stud
חזרו אלי בקשר למוצר
SPECIFICATION
| Product Category: | Full-motion TV Wall Mount |
| Rank: | Standard |
| Material: | Steel, Plastic |
| Metal Sheet Thickness: | Wall Panel 2mm, Panel 1.5mm, Pipe 1.2mm (Wall Panel 0.079", Panel 0.059", Pipe 0.047") |
| Pipe Size: | 40x20x1.2mm (1.6"x0.79"x0.047") |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |

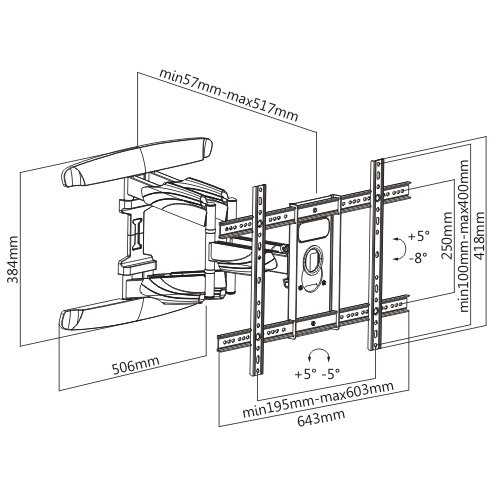

| Dimensions: | 517x643x418mm (20.4"x25.3"x16.5") |
| Fit Screen Size: | 37"-70" |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 200×200,300×200,300×300,400×200,400×300,400×400,600×400 |
| Max. VESA: | 600x400mm |
| Weight Capacity: | 45kg (99lbs) |
| Strength Tested: | 3 Times Approved |
| Profile: | 57~517mm (2.2"~20.4") |
| Tilt Range: | +5°~-8° |
| Swivel Range: | +90°~-90° |
| Screen Level: | +5°~-5° |
| Screen Freely Tilting: | No |
| Installation: | Double Stud(406mm/450mm),Solid Wall |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | Yes |
| Anti-theft: | No |
| Bubble Level: | No |
| Accessory Kit Package: | Compartment Polybag |
