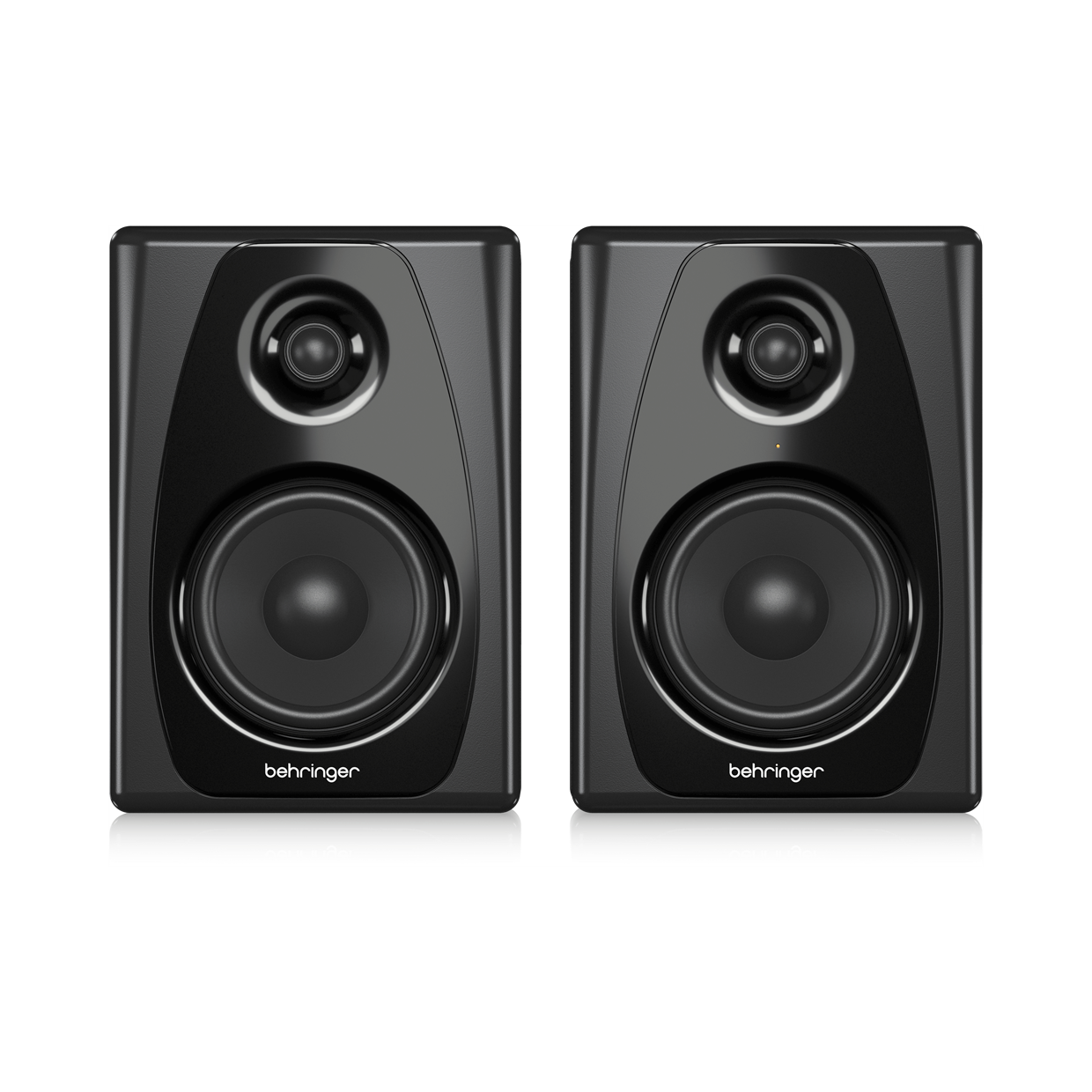

High-Resolution, 150-Watt Bi-Amped Reference Studio Monitors with USB Input
- Ultra-linear 2-way digital monitor speakers ideally suited for computer studios, audio and multimedia workstations
- True bi-amping mode with 4 amplifiers for ultimate high-resolution sound
- 150 Watts of digital power amplification
- Ultra-high resolution 1" silk dome tweeter for superior audio reproduction
- Long-throw 5" woofers with deformation-resistant cone for ultimate bass response
- Advanced waveguide technology provides ultimate sound dispersion and extremely large "sweet spot"
- Adjustable volume control and tweeter sensitivity to adapt to a wide range of acoustic conditions
- USB input for direct connection of digital stereo audio sources
- Two analog inputs featuring XLR and TRS connectors can be used simultaneously with a digital stereo source
| STUDIO 50USB | |
|---|---|
| Amplifier | |
| Maximum output power | 150 W* |
| Configuration | Bi-amping |
| Type | Class-D |
| Overload protection | Dual-controlled limiter |
| Crossover type | Active |
| Crossover frequency | 2.5 kHz |
| Audio Connections | |
| Inputs | 2 x XLR, balanced |
| 2 x ¼" TRS, balanced | |
| Aux in | — |
| Max. input level | +21 dBu |
| Computer connection | USB 2.0, type B |
| Headphone output | — |
| Controls | |
| Volume | — |
| Input trim | ±6 dB, adjustable |
| High freq | +2/0/-2/-4 dB @ 12 kHz, switchable |
| Loudspeaker System Data | |
| Type | 5" woofer |
| .75" tweeter | |
| Frequency response | 55 Hz to 20 kHz |
| Max. sound pressure level | 100 dB @ 1 m |
| Physical | |
| Enclosure | Plastic composite |
| Grille | — |
| Power Supply / Voltage (Fuses) | |
| Type | Switch mode power supply |
| Voltage | 100-240 VAC, 50/60 Hz |
| Power consumption @ 1/8 max power | 40 W |
| Mains connection | Standard IEC connector |
| Dimensions / Weight | |
| Dimensions (H x W x D) | 254 x 204 x 178 mm (10 x 8 x 7") |
| Weight | 6.5 kg (14.3 lbs) |
