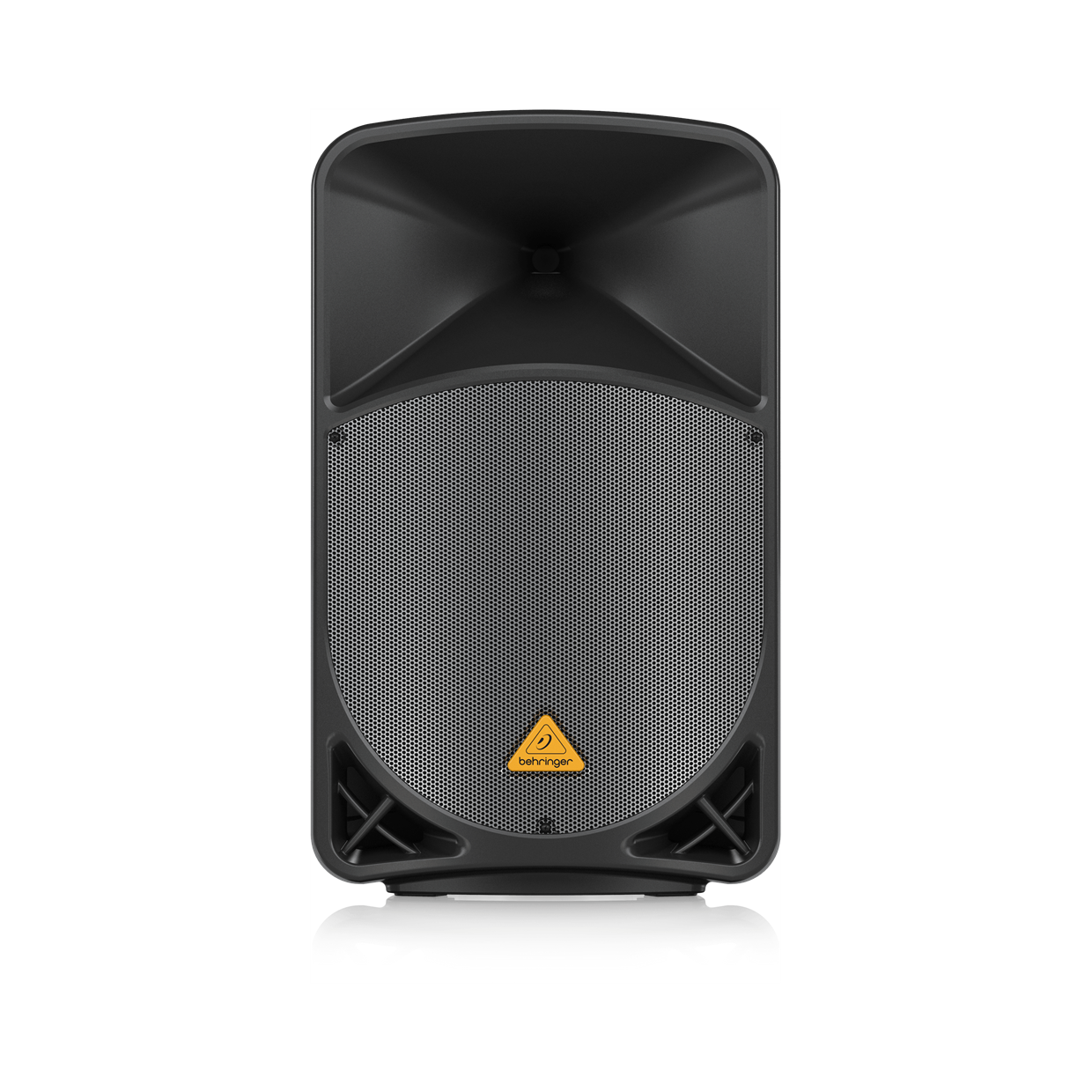

Active 2-Way 15" PA Speaker System with Bluetooth Wireless Technology, Wireless Microphone Option and Integrated Mixer
- High-Power 1,000-Watt 2-way PA sound reinforcement speaker system for live and playback applications
- Ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels
- High-performance Bluetooth A2DP technology to stream audio wirelessly from any Bluetooth-compatible device
- "Wireless-ready" for high-quality Behringer digital wireless microphone system (not included)
- 2-channel mixer with individual Mic/Line inputs, Volume controls and Clip LEDs
- Dedicated 2-band EQ plus integrated sound processor for ultimate system control and speaker protection
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Extremely powerful 15" long-excursion driver provides incredibly deep bass and acoustic power
- State-of-the-art 1.35" aluminum-diaphragm compression driver for exceptional high-frequency reproduction
- Ultra-wide dispersion, large-format exponential horn
- Additional Line output allows linking of additional speaker systems
- Versatile trapezoidal enclosure design allows different positioning:- Stand mounting with 35 mm pole socket- Tilts on its side for use as a floor monitor
- Ergonomically shaped handles for easy carrying and setup
Amplifier
| Low-Frequency Range | |
| Max. output power | 700 W* |
| High-Frequency Range | |
| Max. output power | 300 W* |
Audio Inputs
| XLR (Servo-Balanced) | |
| Sensitivity | -36 dBu to 0 dBu |
| Input impedance | 24 kΩ |
| ¼" TRS Jack (Servo-Balanced) | |
| Sensitivity | -36 dBu to 0 dBu |
| Input impedance | 24 kΩ |
Wireless System
| USB dongle (not included) | USB socket accepts signals from 2 independent Behringer ULM mics |
| Signal indicator LED | 2 (green) |
Bluetooth**
| Frequency range | 2402 MHz ~ 2480 MHz |
| Channel number | 79 |
| Version | Bluetooth spec V2.1+EDR compliant |
| Output power class | Class 2 type output power |
| Compatibility | Supports A2DP 1.2 profiles |
Audio Outputs
| Mix Output | |
| Connector | XLR, balanced |
Level Control
| Input trim | -∞ to +36 dB |
| Max. input level | 18 dBu |
Loudspeaker System Data
| Frequency response | 45 Hz to 20 kHz |
| Crossover frequency | 2.2 kHz |
| Limiter | Optical |
Equalizer
| High | ±15 dB @ 12 kHz |
| Low | ±15 dB @ 80 Hz |
Power Supply / Voltage (Fuses)
| USA / Canada / Japan | 100-120 V~, 50/ 60 Hz (T 6.3A H 250 V) |
| UK / Australia / Europe / China | 220-240 V~, 50/ 60 Hz (T 3.15A H 250 V) |
| Power consumption @ 1/8 rated power | 110 W |
| Mains | Standard IEC receptacle |
Dimensions / Weight
| Dimensions (H x W x D) | 713 x 427 x 313 mm (28.1 x 16.8 x 12.3") |
| Weight | 17.7 kg (38.9 lbs) |
Note: *Independent of limiters and driver protection circuits
**The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by MUSIC Group is under license.
Bluetooth audio streaming performance and range vary by make and model of smart phone and can be affected by Wi-Fi networks or wireless microphones such as the Behringer ULTRALINK. Avoid use of Bluetooth audio streaming where such devices are in use.
