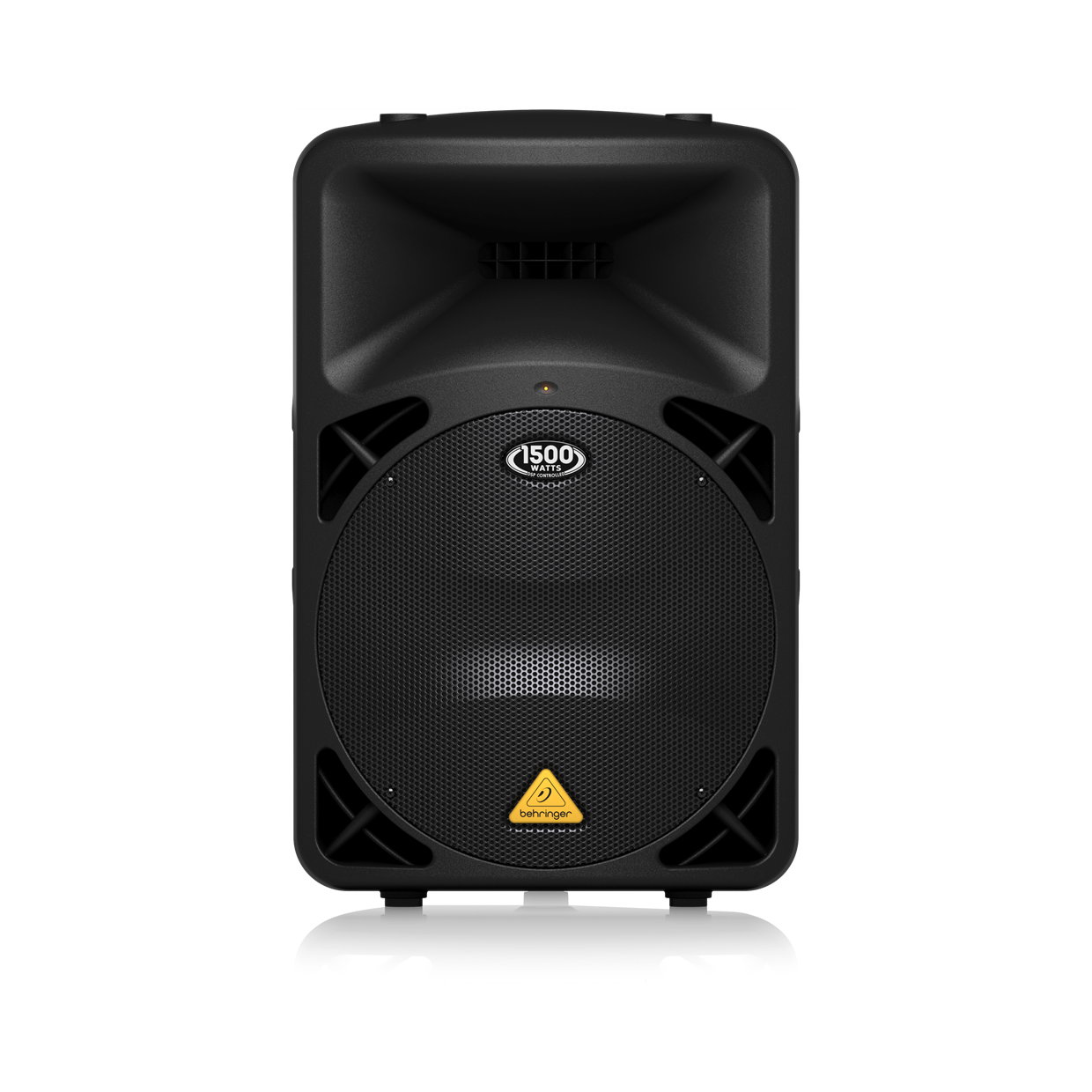

Active 2-Way 1500W PA Speaker System with 15" Woofer and 1.75" Titanium Compression Driver
- High-power 2-way PA sound reinforcement speaker system for live and playback applications
- Ultra-compact and light weight system delivers excellent sound even at extreme sound pressure levels
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Internal switch-mode power supply for noise-free audio, superior transient response and very low power consumption
- Integrated sound processor for ultimate system control and speaker protection
- Extremely powerful 15" long-excursion driver provides incredibly deep bass and acoustic power
- State-of-the-art 1.75" titanium-diaphragm compression driver for exceptional high-frequency reproduction
- Ultra-wide dispersion, large-format exponential horn
- Ultra-low noise Mic/Line input with Volume control and Clip LED
- Dedicated 2-band EQ for perfect sound adjustment
- Additional Line output allows linking of additional speaker systems
- Versatile trapezoidal enclosure design allows different positioning: – Stand mounting with 35-mm pole socket – Tilts on its side for use as a floor monitor
- Ergonomically shaped handles for easy carrying and setup
- Designed and engineered in Germany
| Specification |
B615D |
| Amplifier Power Output |
|
| Low-frequency range |
|
| Max. output power |
1200 W* |
| High-frequency range |
|
| Max. output power |
300 W* |
| Speaker Size |
|
| Size |
15" / 387 mm |
|
1.75" / 44 mm |
| Audio Inputs |
|
| XLR (servo-balanced) |
|
| Sensitivity |
-40 dBu to +4 dBu |
| Input impedance |
20 kΩ |
| ¼” TRS Jack (servo-balanced) |
|
| Sensitivity |
-40 dBu to +4 dBu |
| Input impedance |
20 kΩ |
| Level control |
|
| Input trim |
∞ to +50 dB |
| Max. input level |
+22 dBu |
| Link |
|
| Connector |
XLR connector |
| Loudspeaker System Data |
|
| Frequency response |
50 Hz to 18 kHz |
| Crossover frequency |
1.8 kHz |
| Sound pressure level |
max. 126 dB SPL @ 1 m |
| Limiter |
Optical |
| Dynamic equalizer |
Processor-controlled |
| Equalizer |
|
| High |
12 kHz / ±15 dB |
| Low |
80 Hz / ±15 dB |
|
|
|
|
|
|
|
|
|
|
|
|
| Power consumption |
max. 600 Watts |
| Mains connection |
Standard IEC receptacle |
| Dimensions/Weight |
|
| Dimensions (H x W x D) |
28.8 x 18.5 x 16.7" |
|
732 x 470 x 424 mm |
| Weight |
57.8 lbs / 26.2 kg |
