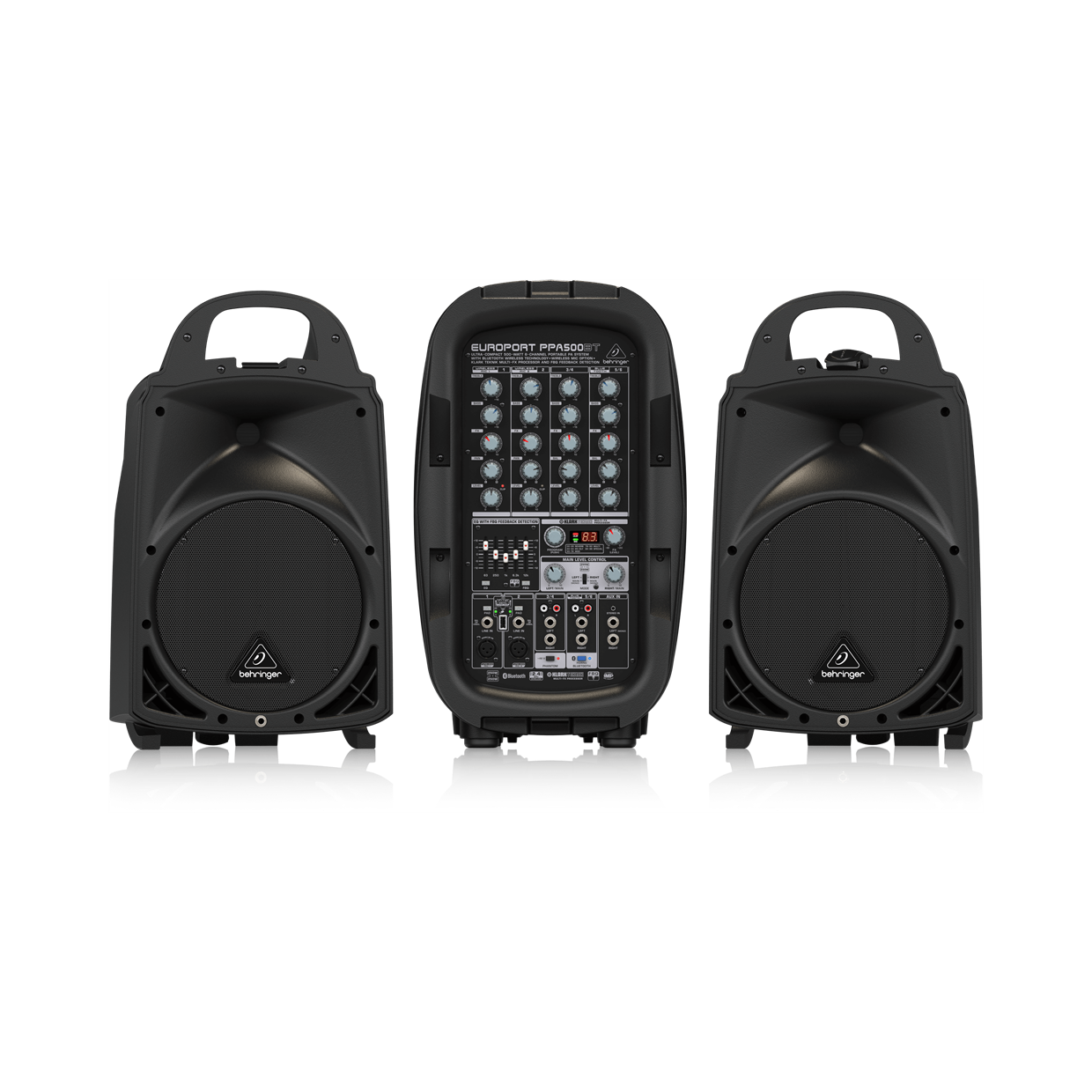

Ultra-Compact 500-Watt 6-Channel Portable PA System with Bluetooth Wireless Technology, Wireless Microphone Option, KLARK TEKNIK Multi-FX Processor and FBQ Feedback Detection
- Ultra-compact 500-Watt, 6-channel portable PA system
- Perfect for parties, schools, corporate and educational presentations, seminars, aerobics, auctioneers, working musicians, tour guides, weddings, etc.
- Enormous power, incredible sonic performance, and super-light weight means no more lugging around dead weight
- Extremely powerful 8" woofers and 1.35" aluminum-diaphragm compression drivers for incredible sound reproduction
- Connect your iPod, iPhone, iPad or any other MP3 player via Bluetooth
- "Wireless ready" for high-quality Behringer digital wireless microphone system (not included)
- Ultra-high quality Klark Teknik FX processor with 100 presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
- 6-channel mixer section features 2 mono and 2 stereo channels
- 2 high-quality mic preamps with switchable +48 V phantom power for condenser microphones
- Effective, extremely musical 2-band EQ, switchable Pad and Clip LEDs on all mono channels
- Stereo 5-band graphic EQ allows precise frequency correction of main outputs
- Comes with a Behringer XM1800S microphone, mic clip and 20' cables
- Integrated storage compartment for microphone, cables, and accessories
- "Planet Earth" switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy savings
| Mixer Section | PPA500BT |
| Inputs | |
| Channels 1 – 2 | 2 x XLR 2 x ¼" TRS, balanced 1 x 2-channel Behringer ULM Digital Wireless |
| Channels 3 – 4 | 2 x ¼" TS, unbalanced 2 x RCA, unbalanced |
| Channel 5/6 | 2 x ¼" TS, unbalanced 2 x RCA, unbalanced 1 x Bluetooth wireless technology** |
| Channel 7/8 | — |
| Stereo aux in | 2 x ¼" TS, unbalanced 1 x ⅛" TRS, unbalanced |
| Outputs | |
| Sub out | — |
| Recording out | — |
| Channel EQ | |
| Bass | ±15 dB @ 80 Hz |
| Treble | ±15 dB @ 12 kHz |
| Graphic EQ | |
| Type | 5-band |
| Wireless Input | |
| USB dongle (not included) | USB socket accepts signals from max. 2 BEHRINGER ULM microphones |
| Signal indicator LED | 2 (green) |
| Bluetooth® Wireless Technology | |
| Frequency range | 2402 MHz ~ 2480 MHz |
| Channel number | 79 |
| Version | Bluetooth® wireless technology spec 3.0 compliant** |
| Output | Class 2 type output power |
| Compatibility | Supports A2DP 1.2 profiles |
| Function Switches | |
| FBQ | Activates the FBQ Feedback Detection System |
| EQ | Activates the graphic EQ |
| Effects | |
| Type | KLARK TEKNIK |
| Converter | 24-bit Delta-Sigma |
| Sampling frequency | 40 kHz |
| Display | 2-digit, 7-segment |
| Amplifier | |
| Maximum Output Power | |
| 4 Ω per stereo channel | 2 x 1000 W* |
| 8 Ω per stereo channel | 2 x 500 W* |
| System | |
| Frequency response | 50 Hz to 22 kHz |
| Signal-to-noise ratio | 85 dB, A-weighted |
| Speaker outputs | ¼" TS, left and right |
| Speakers | 10" woofer and 1" compression driver |
| Power Supply / Voltage (Fuses) | PPA500BT |
| USA / Canada | 120 V~, 50/60 Hz (T 5 A H 250 V) |
| Japan | 100 V~, 50/60 Hz (T 5 A H 250 V) |
| UK / Australia / Europe / Korea / China | 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) |
| Power consumption @ 1/8 rated power | 90 W |
| Mains connection | Standard IEC receptacle |
| Dimensions / Weight | PPA500BT |
| Dimensions (H x W x D) | 672 x 520 x 304 mm (26.5 x 20.5 x 12") |
| Weight | 20.3 kg (44.7 lbs) |
