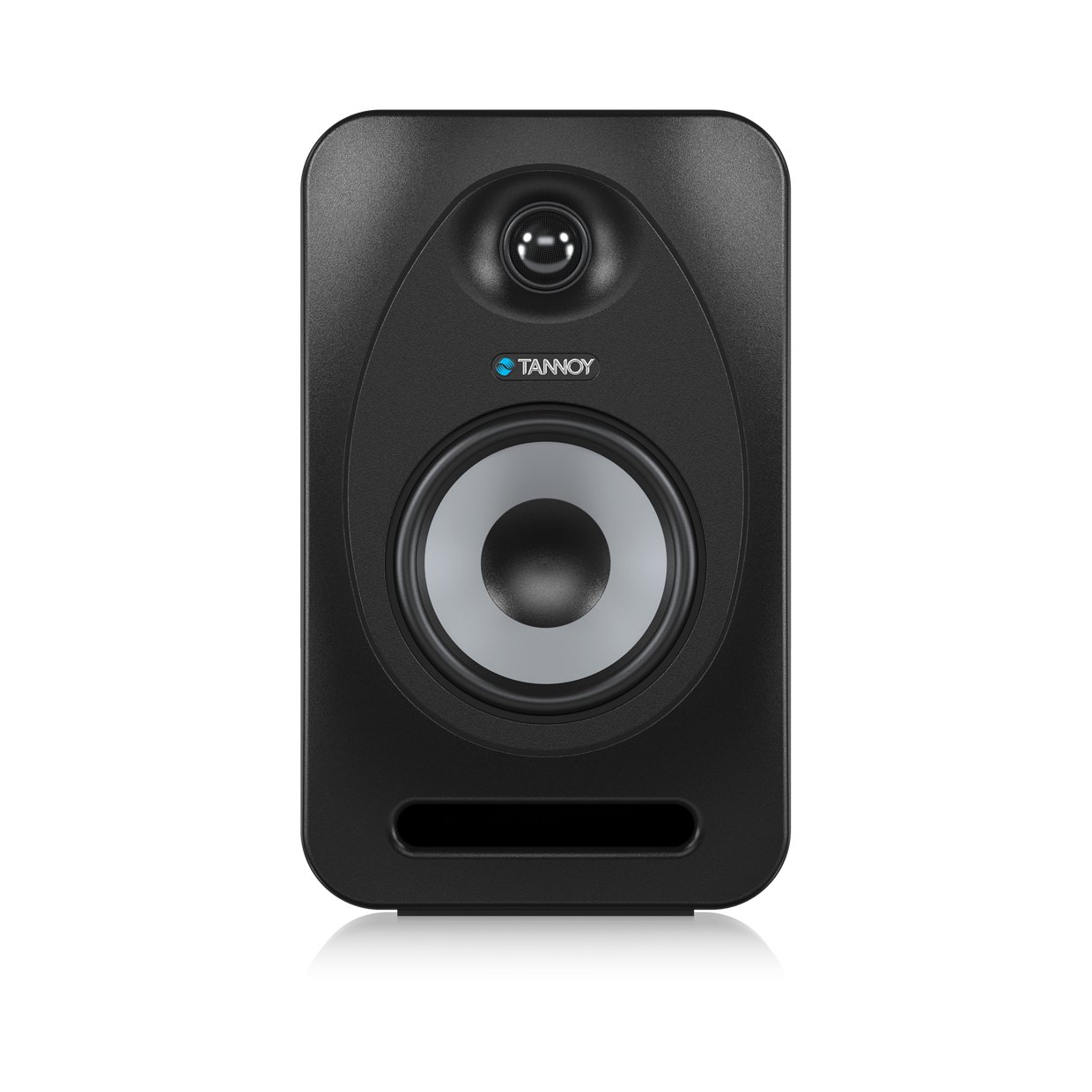

70 Watt 4" Bi-Amped Ultra-compact Studio Reference Monitor with Tuned Front-Firing Bass Port
- Reference monitor ideal for desktop recording or secondary monitoring in personal studios
- 70 Watt custom bi-amped design delivers impressive sound from an ultra-compact enclosure
- 4" custom high-efficiency low-frequency driver for extended bass response
- ¾" soft-dome 'Poke-Resistant' tweeter for detailed high-frequency reproduction
- Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low-frequency performance
- Ultra-wide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix
- Rubberized foam base provides acoustic isolation
- Adjustable equalization to match your listening environment
- Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility
- 1/8" stereo input with monitor link facility for connection of mobile devices (cable included)
- Tannoy – around 100 years of British sound heritage and innovation
General
| Frequency Response |
56 Hz -48 kHz |
| Max SPL |
101 dB |
Membrane Sizes
| HF |
¾" Soft Dome (19 mm) |
| LF/Mid Range |
4” (100 mm) |
Bi-amp Output Power, RMS
| Power Output |
50 Watts |
| LF/Mid Range |
25 Watts |
| HF |
25 Watts |
| THD |
< 0.9 % |
Input Types and Impedances
| Balanced |
XLR, 20 kOhm |
| Unbalanced |
¼" Jack, 10 kOhm |
| AUX Link |
Mini Jack, 10 kOhm |
| AUX Link Output |
Mini Jack |
EQ Options
| HF EQ Settings |
-1.5 dB HF Cut / Neutral / +1.5 dB HF Boost |
| Crossover Frequency |
2.8 kHz |
| Low Frequency Alignment |
Optimized Front Port |
Cabinet Dimensions
| HxWxD, inches |
9.5 x 5.8 x 8.4 |
| HxWxD, mm |
240 x 147 x 212 |
