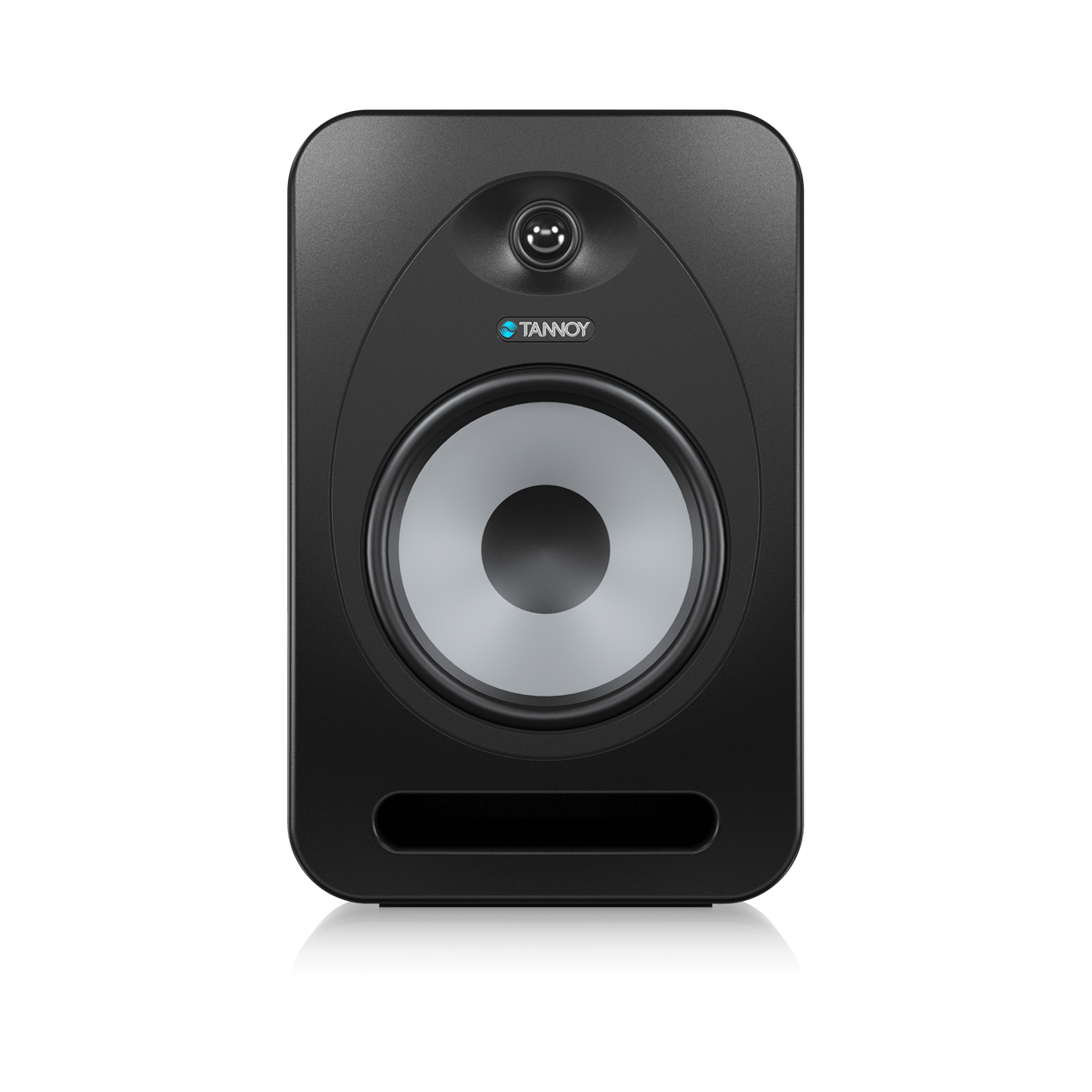

140W 8" Bi-Ampified Studio Reference Monitor with Tuned Front-Firing Bass Port
- Reference monitor ideal for personal studio monitoring
- 140 Watt custom bi-amped design delivers rock-solid bass and premium tonal clarity at any volume
- 8" custom high-efficiency low frequency driver for maximum bass response
- 1" soft-dome 'Poke-Resistant' tweeter for detailed high frequency reproduction
- Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low frequency performance
- Ultra-wide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix
- Rubberized foam base provides acoustic isolation
- Adjustable equalization to match your listening environment
- Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility
- 1/8" stereo input with monitor link facility for connection of mobile devices (cable included)
- Tannoy – around 100 years of British sound heritage and innovation
General
| Frequency Response | 42 Hz – 43 kHz |
| Max SPL | 114 dB |
Membrane Sizes
| LF/Mid Range | 8" (200 mm) |
| HF | 1" Soft Dome (25 mm) |
Bi-amp Output Power, RMS
| Power Output | 100 Watts |
| LF/Mid Range | 75 Watts |
| HF | 25 Watts |
| THD | < 0.4 % |
Input Types and Impedances
| Balanced | XLR, 20 kOhm |
| Unbalanced | ¼" Jack, 10 kOhm |
| AUX Link | Mini Jack, 10 kOhm |
| AUX Link Output | Mini Jack |
EQ Options
| HF EQ Settings | -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost |
| Crossover Frequency | 1.8 kHz |
| Low Frequency Alignment | Optimized Front Port |
Cabinet Dimensions
| HxWxD, inches | 15.4 x 10.0 x 11.8 |
| HxWxD, mm | 390 x 254 x 300 |
