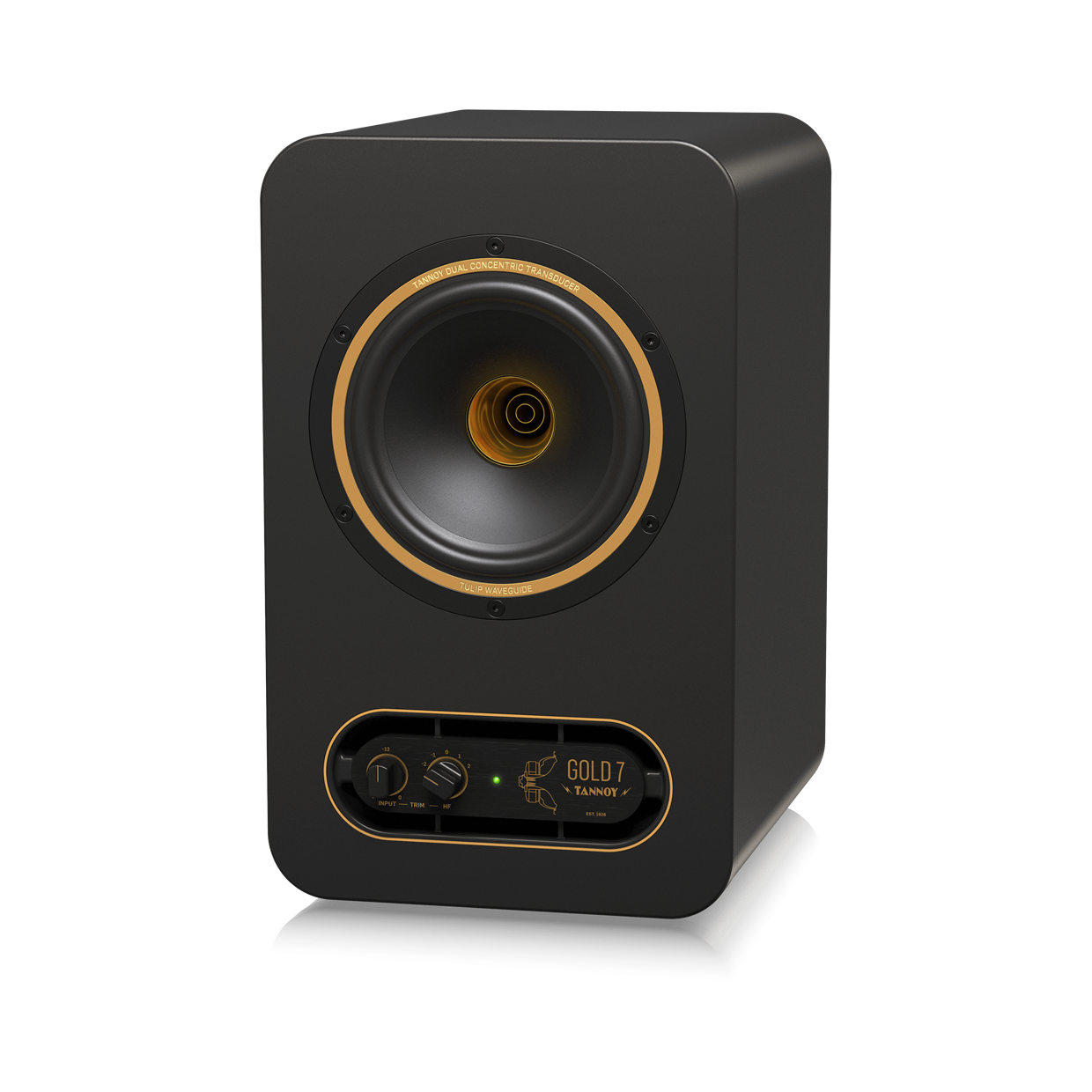

מוניטור אולפני "6.5 דגם GOLD 7 מסדרת GOLD מבית TANNOY



Premium 300-Watt Bi-Amplified Nearfield Studio Reference Monitor with Proprietary 6.5" Dual Concentric Point Source Technology



  • Premium 300 Watt bi-amped nearfield studio reference monitor for accurate sound reproduction with outstanding definition
  • Ultra precise and neutral soundstage delivers non-fatiguing sound for extended listening sessions
  • Legendary Tannoy Dual Concentric driver technology provides class leading phase coherence and point source imaging
  • Front-firing bass port design allows for near-wall placement and ensures optimal low frequency performance
  • Next generation 6.5" Dual Concentric driver secures unrivalled musical articulation and outstanding dynamics
  • 1" titanium tweeter with Tulip waveguide produces detailed stereo image with widened “sweet spot”
  • Class-AB system with transducermatched LF and HF bi-amplification for accurate dynamics
  • Continually-active XLR and TRS phone jack inputs let you connect up to 2 audio sources
  • Dedicated input trim, bass and treble controls let you optimize the audio for your listening conditions
  • Selectable automatic standby mode conserves energy
  • Tannoy – around 100 years of British sound heritage and innovation



Frequency response 65 Hz – 20 kHz ± 3 dB

46 Hz – 20 kHz -10 dB
Nominal dispersion  90° conical  @ -6 dB point
Maximum SPL  110 dB
Crossover type  2 way, active
Crossover frequency  1.5 kHz
Transducers 1 x 6.5" (165 mm) LF driver 1 x 1" (25.4 mm) HF drivers
Limiter Independent high and low frequency limiters
Magnetic shielding  No



Amplifier



Maximum output power  300 W
Type Class-AB
Protection Short circuit, thermal



Connectors



Inputs 1 x XLR, balanced

1 x 1/4" TRS, balanced

3.5 mm stereo mini jack
Sensitivity  0 dBu, nominal
Input impedance  5 kΩ unbalanced, 10 kΩ balanced
Maximum input level +20 dBu
Outputs Monitor link, 3.5 mm stereo mini jack
User controls Power on / off, Input trim, HF trim, Bass adjustment, Auto-standby on / off



Power Supply



Power consumption 70 W @ 1/8 max power
Voltage (fuses) 100-240 V~, 50/60 Hz (T 3.15 A L 250 V)
Mains supply IEC mains connector with integrated power switch



Enclosure



Dimensions (HWD) 357 x 221 x 288 mm  (14.0 x 8.7 x 11.3")
Net weight  9.4 kg (20.7 lbs)
