יחידת מוניטור אקטיבי "9

תיאור

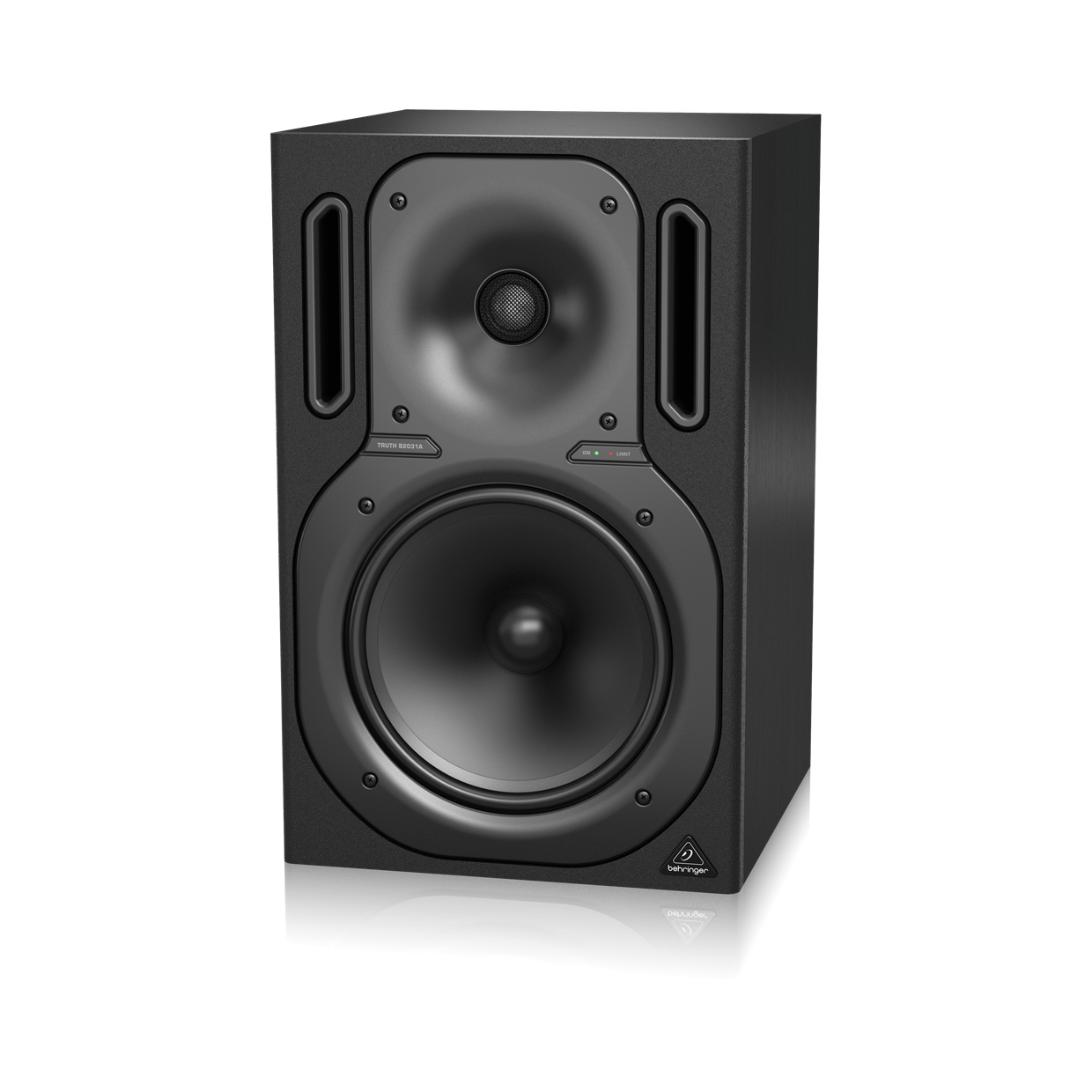

High-Resolution, Active 2-Way Reference Studio Monitor

Ultra-linear frequency response from 50 Hz to 21 kHz with individual frequency diagrams
Built-in 265-Watt Bi-amp module with enormous power reserve
Ultra-high resolution ferrofluid-cooled tweeter
Long-throw 8 ¾" woofer with special polypropylene diaphragm and deformation-resistant aluminum die-cast chassis
Controlled dispersion characteristics and extremely large "sweet spot" owing to the unique Behringer wave guide technology
Active crossover network with 4th order Linkwitz-Riley filters
Adjustable to a wide range of acoustic conditions and subwoofer operation
Separately controlled limiter for low and high frequency overload protection
Automatic standby mode (defeatable)
Magnetic shielding allows placement near computer monitors
Servo-balanced inputs with XLR and ¼" TRS connectors

Specification	B2031A
Audio Inputs
XLR connector	servo-balanced input
¼" TRS	servo-balanced input
Input impedance	10 kΩ
Max. input level	+22 dBu
Components
Tweeter	1" ferrofluid-cooled dome
Woofer	8 ¾" polypropylene diaphragm
Amplifier
RMS @ 0.1% THD	140 W
Peak power	265 W
Crossover
Type	active, 4th order Linkwitz-Riley
Crossover frequency	2 kHz
System Specification
Frequency response	50 Hz to 21 kHz
Sound pressure level	max. 116 dB SPL @ 1 m (pair)
Power Supply
Voltage/Fuses
100-120 V~, 50/60 Hz	T 5.0 A H 250 V
220-230 V~, 50/60 Hz	T 2.5 A H 250 V
Voltage/Supply Current
100-120 V~, 50/60 Hz	max. 2.0 A
220-230 V~, 50/60 Hz	max. 1.1 A
Mains Connection	Standard IEC connector
Dimensions/Weight
Dimensions (H x W x D)	400 x 250 x 290 mm (15 ¾" x 9 13/16" x 11 3/8")
Weight	14 kg (31 lbs)
